ZTW

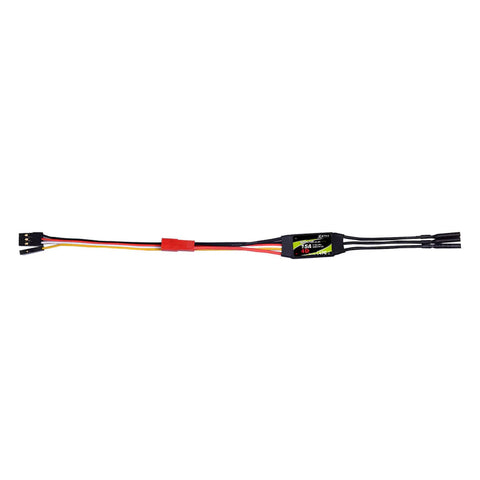

ZTW MANTIS SLIM G2 2-4s 15A - 30A BRUSHLESS ESC 4D with 3A , 5V BEC and Thrust Reverse (2 mm connector - JST
New selected esc perfect fit for indoor Brushless outrunners
WITH THURST REVERSE !
.
We(ZTW) have released a new 32-bit Mantis Slim G2 20A ESC 2-4S SBEC for RC airplane fixed-wing or indoor F3P 3D/4D Flying.
Key Features:
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.
4. Mini size, light weight, Higher driving efficiency and more energy-saving.
5. Two modes "Forward Only" and "Forward and Reverse" for ultimate 3D/4D flying.
6. Super strong SBEC output, continuous 6V/3A, peak 3.5A current.
7. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.
8. Support high RPM motors, and compatible with most motors in the market.
9. Support programming via Phone App or LCD program card, easier and more convenient operation(Extra ZTW Bluetooth Module or LCD program card G2 needed).
Key Features:
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.
4. Mini size, light weight, Higher driving efficiency and more energy-saving.
5. Two modes "Forward Only" and "Forward and Reverse" for ultimate 3D/4D flying.
6. Super strong SBEC output, continuous 6V/3A, peak 3.5A current.
7. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.
8. Support high RPM motors, and compatible with most motors in the market.
9. Support programming via Phone App or LCD program card, easier and more convenient operation(Extra ZTW Bluetooth Module or LCD program card G2 needed).
Specification:
| Model | Mantis Slim G2 15A 2-4S SBEC |
| Continuous Current(A) | 15 Amps |
| Burst Current(A) | 30 Amps |
| Voltage | 2-4S LiPo/5-12NC |
| Power Wire | 20 Gauge 60mm-Red/60mm-Black |
| Motor Wire | 20 Gauge 60mm-Black |
| BEC Output | 5V/ 3A |
| Size(not including wires) | 25.5*15*5.2mm(L*W*H) |
| Weight | 9g |
| Firmware Upgrade |
Click here to download the programming manual
