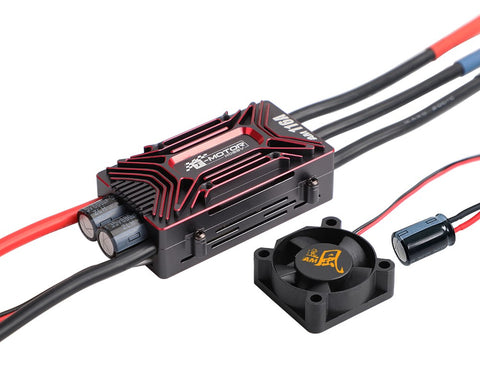

T-Motor AM 116A  3-8s brushless Esc (with 15A UBEC)

Castle Creations

T-Motor AM 116A 3-8s brushless Esc (with 15A UBEC)

€175.90

Product Details

PERFECT FIT FOR T-motor AM 600 series

 Top T-Motor AM116A controller for powerful engines. The regulator can be powered by a 3-8S Lipo battery and can handle a current of up to 116A. The controller also includes a switched BEC with an adjustable voltage of 5.8, 7.4 or 8.2V and a load capacity of up to 15A permanently (25A short-term). Thanks to advanced firmware and a 32-bit processor, the controller ensures accurate throttle response. Holes for easy attachment of the regulator using tightening straps will also come in handy. The package also includes a small fan that can be attached to the controller for active cooling.

The AM116A regulator can be supplemented with an AM Link module, which enables the transmission of telemetry from the regulator to the transmitter as well as advanced setting options.

Key Features
Power supply: 3-8S Lipo
Current: 116A (136A short-term)
BEC voltage: 5.8/7.4/8.2V - adjustable
BEC current: 15A (25A short-term)
Size: 75x42x21.8mm
Weight: 113g
Power cable: 200mm 4mm2 (12AWG) without connector
Output cables: 90mm 4mm2 (12AWG) - 4mm Bullet connector
Signal cable: 400mm
Package Includes
1x Regulator
1x Condenser
1x Set of screws
1x Fan
