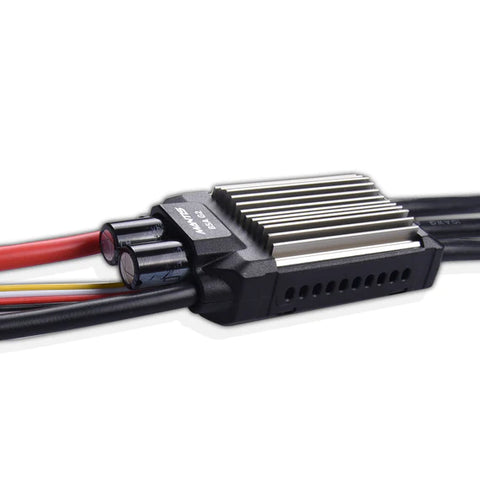

ZTW MANTIS SERIES G2 3-8s 85 A - 95 A BRUSHLESS ESC W/ 8A ADJUSTABLE SBEC and Thrust Reverse

Setting options:

SMR function: reverse thrust by changing the direction of rotation as soon as the model has landed (off / on)
Attention, this function may only be used on the ground and up to max. 50% power, otherwise the controller can be damaged!
Brake (Off / Soft / Middle / Hard)
Timing (Auto / 5° / 10° / 15° / 20° / 25° / 30°°)
Direction of rotation (clockwise / counter clockwise)
SR function (On / Off) – the synchronous rectification (Synchronous Rectification Function) makes the regulator more efficient and energy-saving
Number of cells (auto / manual setting)
Low Voltage Cut Off Threshold (Off / 2.3V / 2.5V / 3.0V / 3.2V / 3.4V / 3.6V)
Low Voltage Cut Off Type (Reduce Power/ Cut Off Power)
SBEC output voltage (5.0 / 6.0V / 7.4V / 8.4V) – available on all controllers with SBEC, adjustable voltage range depending on controller type
Acceleration (Normal / Soft)
Starting Current (Low / Mid / High)
Own programming box (incl. LiPo check, servo test and much more) for easy programming optionally available
