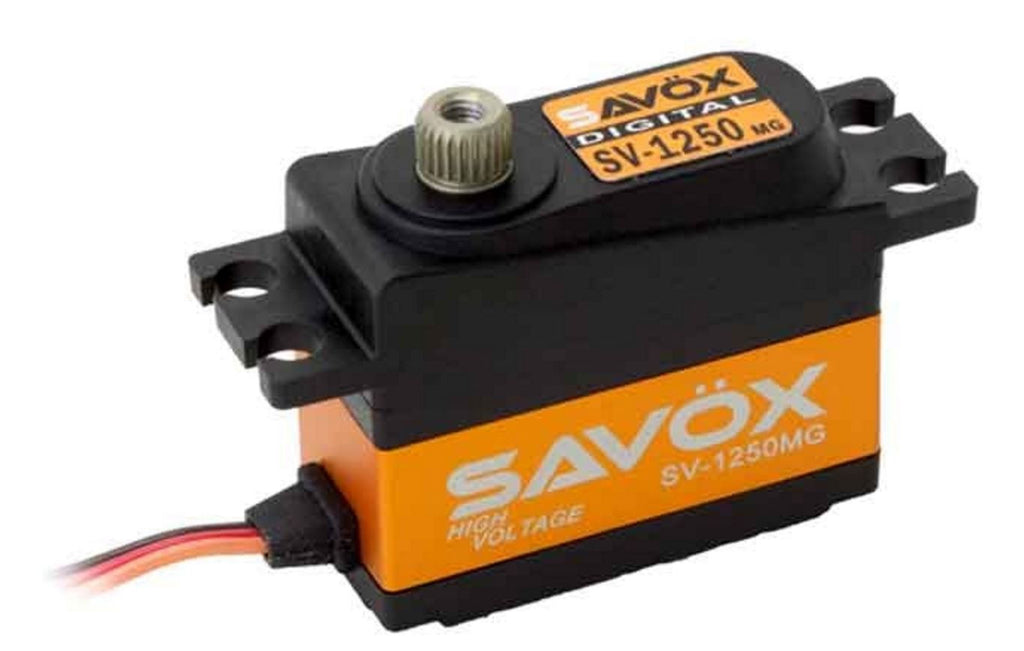

Savox SV-1250MG


Savox SV-1250MG


The servo SV-1250MG is a high voltage digital servo with coreless motor, 2 ball bearings and metal gears. It can be used in airplanes, helicopters, cars, and boats, for example as swash plate servo in helicopters. The delivery includes the servo as well as the servo arms and the mounting screws.

Technical specifications:

scope: cars, airplanes, boats, helicopters
classification: midi
driving: digital
high voltage: yes
ball bearings: yes (two)
gears: metal
case partly metal
length ca.: 35.0 mm
width ca.: 15.0 mm
height ca.: 29.2 mm
weight ca.: 29.6 g
input voltage: 6 - 7.4 Volt
torque at 6.0 V ca: 46 Ncm
speed at 6.0 V ca: 0.11 sec/60°
torque at 7.4 V ca: 80 Ncm
speed at 7.4 V ca: 0.095 sec/60°
motor coreless
