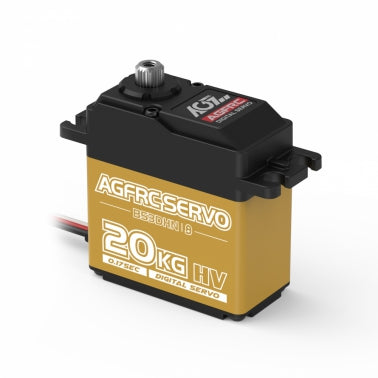

AGF-RC B53 DHS 20mm standard HV servo 20kg

Description

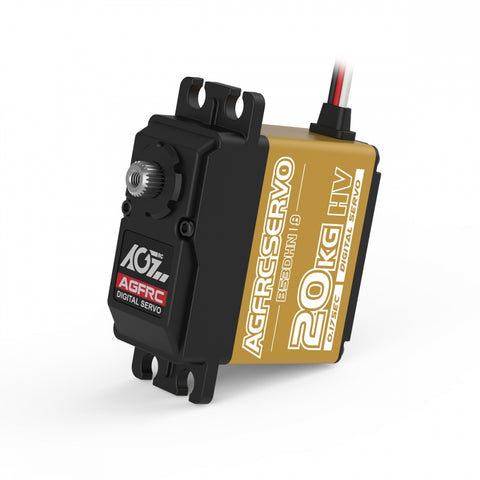

The AGF-RC B53DHN is a 20mm standard servo with a partial aluminum housing. The servo is HV-compatible and can be powered directly by a 2S LiPo battery (4.8 - 8.4V).

With 20kg of torque, this powerhouse can demonstrate its capabilities in a variety of applications. The maximum servo travel is up to 180°.

Whether in fixed-wing aircraft or RC cars, the B53DHN delivers top performance at a very good price.

15kg at 6.0V: 0.21 sec / 60°
18kg at 7.4V: 0.185 sec / 60°
20kg at 8.4V: 0.17 sec / 60°

The B53DHN is also programmable with the optional AGF-SP USB interface.

A Windows computer running Windows 7 or 10 is required. The servos are powered directly via the USB port and simply need to be plugged into the interface. The software allows you to adjust settings such as soft start, neutral point, servo travel (increased or decreased), and direction of rotation. Additionally, the Sanwa SSR mode can be activated if needed, which is particularly useful for RC car drivers. The integrated overload protection can also be adjusted to three different levels, and you can select what should happen in the event of signal loss.

These are optional features, of course; all servos can be used normally right out of the box and do not require any prior configuration!

These are optional features. Specifications
Transit time S2/60° (sec): 0.17
Transit time S1/60° (sec): 0.21
Actuating force S1 (kg*cm): 15

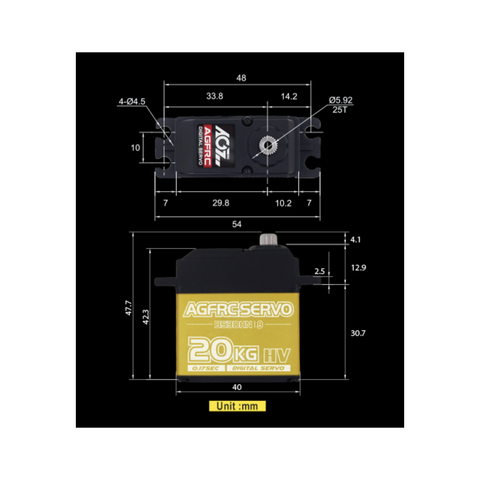

Width (mm): 20
Actuating force S2 (kg*cm): 20
Control frequency in Hz (Up to): 333
Voltage range in volts: 4.8-8.4
Length (mm): 40
Height (mm): 42.3
Weight (g): 63
Packaging: Large blister pack AGF
High-voltage capable: Yes
Motor type: Brushed motor
Recommended applications: Helicopter, airplane, car, boat
Ball bearings (number): 2
Voltage 1 (volts): 6.0
Housing type: Semi-metal
Output teeth (number): 25
Voltage 2 (volts): 8.4
Gear material: Titanium
Classification: Standard
