ZTW 10A EXTERNAL BEC (UBEC)  6A - 10A max

ZTW

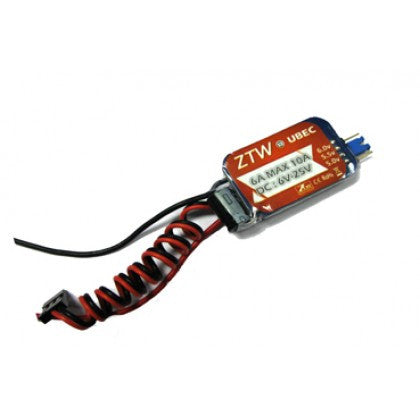

ZTW 10A EXTERNAL BEC (UBEC) 6A - 10A max

€17.90

These high power external BECs manufactured by ZTW have been specifically designed for extreme aerobatics and therefore have the capability to support the higher momentary peak demand loads to eliminate the possibility of unwanted shutdowns, and are also capable of supporting continuous simultaneous multiple servo operations typically found in CCPM equipped hardcore 3D E-helicopters.

Features:
  • Switch mode
  • Easy setup and operation
  • Battery polarity reversal protection (unit will not function if power connection is wrong)
  • Status indicator LED shows when BEC is working
  • Advanced CPU decreased the electromagnetic interference to ensure optimal performance of the RX
Specifications:
  • Output: 5.0V/6A, 5.5V/6A, or 6.0V/6A  (changeable with jumper)
  • Input Voltage: 6V-25V (2-6s LiPo; 5-18 cell Ni-XX
  • Output Current: 6A Continuous, 10A Burst
  • Weight: 18g
  • Dimensions: 45 x 23 x 10mm



Click here to download the ZTW 6A BEC User Manual
