Power 50-500 KV Brushless outrunner

3d extra time power systems

Power 50-500 KV Brushless outrunner


Power 50/500KV is a private label brand of 3d extra time power systems.

All brushless motors are produced by our norms and standards fitting in the most popular ARF planes at this moment where torque and performance control is required.


Outrunner brushless motor Rotational Speed: 500 (kv) RPM/V Continuous Current:80A Max. Current:90A
SpecificationRotational Speed: 500 (kv) RPM/V
Continuous Current: 80A
Max. Current: 90A
Input Voltage: 6 - 28V
Max. Efficiency: 98%
No Load Current: 2A
Internal Resistance: 25m(Omega)
Power: 1200-1780W
Motor Weight : 285 gr
Motor Dimensions (Diameter x Length): 50mm x 55mm
Propeller Dimensions: 14x7 - 15x7
Input Battery Types:  Li-po Battery
Recommend Model: Airplane on 6s

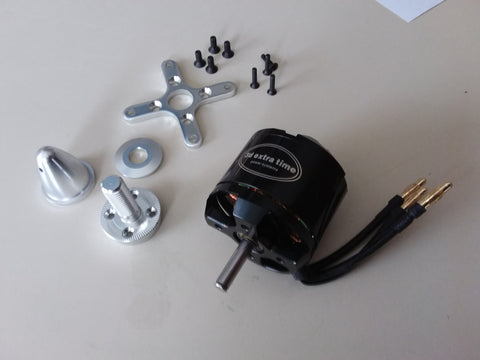

Package Contents 1 x Motor(soldered the 4 MM connector plug)
1 x prop adapter
1 x mounting

Power 50-500KV and 15x7 XOAR prop gives 1600 WATT on a fresh Gens ACE 6S 3700 mah 60-120C

 Required Esc : ZTW Mantis 85A or ZTW GECKO 85A

Perfect fit for 3dhs - Extreme flight 60 inch size planes

Extra 300 '60 - Edge 540 Demonstrator '60 - MXS '64 - Extra 330 LT '61 - Slick 580 '60 - AJ Slick 540 '59
