Jeti DS 24 II -  24 channel transmitter (Pre order)

Jeti

Jeti DS 24 II - 24 channel transmitter (Pre order)

€2,389.00

Precise RC transmitters benefit from all of the features that the Duplex 2,4GHz EX system can offer.

The transmitters contain an advanced user interface that allows you almost unlimited programming. On-line and off-line telemetry are available as well as alarms, custom audio playback etc.

The design goals were maximum utility, durability, and reliablity of their mechanical parts along with simple handling. The metal case, with its chemically resistant finish, provides maximum protection for the interior components. The straightforward case shape makes servicing easy. The control gimbals, ball bearing equipped with their magnetic Hall sensors are another revolutionary design concept used to make the DC/DS among the world’s most advanced R/C systems.

Purposefully placed at the top of the transmitter, the sunlight readable color LCD with its wide viewing angle offers nearly perfect visibility in just about any lighting condition. Thanks to its high resolution display and use of a relatively large number of graphic images it was possible to create a simple and intuitive setup procedure for displaying telemetric data.

The DUPLEX EX family of products have been equipped with an improved real-time telemetry system which can be viewed on the LCD transmitter display. The transmitter allows the setup of voice notifications, both preinstalled and user created, which can be related to telemetric values, user set alarms, or signals which have been assigned to conditions of various control elements.

The transmitters of the DS series are designed for thumb control.These transmitters can be placed in a counter for these transmitters.

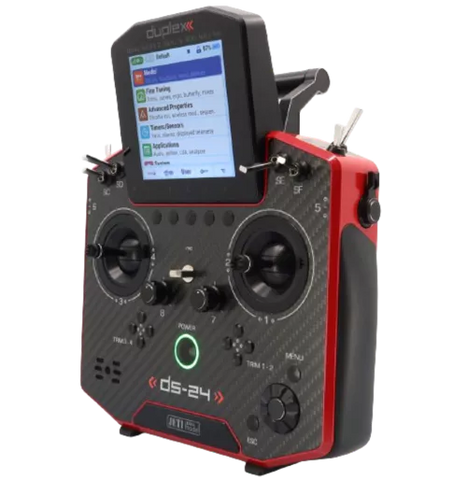

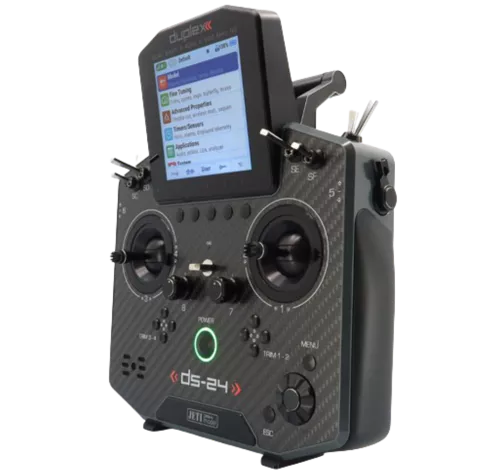

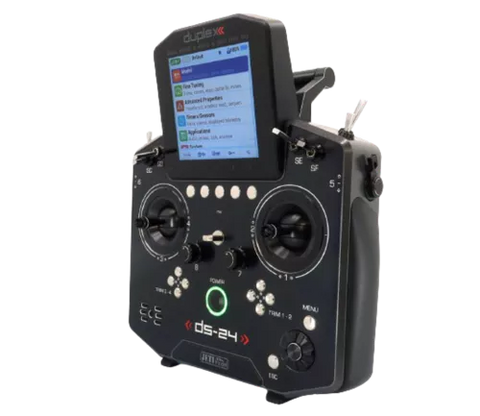

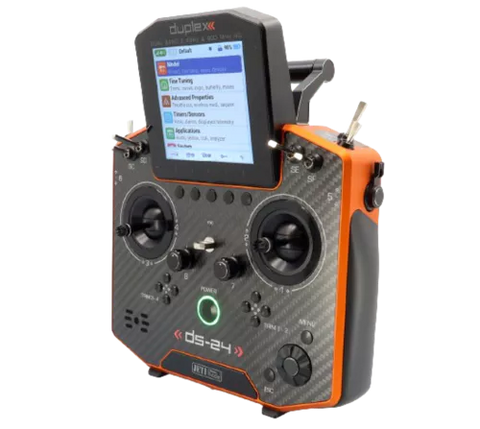

DS-24II

The second generation of the DS-24II transmitter series features a timeless design with a redesigned and lighter frame for enhanced comfort. It now supports Bluetooth connectivity with smartphones and includes new stick controls with front side adjustments.

Powered by a high-performance processor with a large memory delivers high-quality texture settings and higher resolution on a completely new and larger display. The improved graphics facilitate better navigation within the menu.

The transmitter has a new graphical interface JUi2

Main features:

  • New stick controls with front side adjustments

  • Simple replacement of the front potentiometers with switches
  • New, simpler switch replacement system

  • New back panel ergonomics

  • 4" LCD with high brightness for sunlight readability

  • Bluetooth connectivity for headphones
  • Online telemetry via Bluetooth for smartphones

  • Wi-Fi module - Online updates (in future updates)
  • One connector for both PPM and phone output

  • Application for displaying telemetry on smartphones Android/iOS ("JETI studio M")
  • USB-C connector for charging and PC/MAC connection

  • System DUPLEX 2.4GHz (fully compatible with the Duplex system and previous JETI transmitters)
  • 900 MHz NG* backup system (* Next Generation)

  • Weight reduction

  • New color pallet of the frame

Package contents:

  • Aluminum case
  • Strap
  • REX12 Assist receiver with accessories
  • Charger
  • USB-C cable
  • DUPLEX pad
  • Assembly keys
  • Cleaning cloth
  • Manuals

Parameters :

  • Weight [g] : 1300
  • Transmitter Aluminum Case : Yes
  • Transmitter Battery Pack (mAh) : 6200
  • Backlit LCD : 4"
  • Memory, SD Card : 8 GB
  • Gimbal Hall Sensors/Vibration : Yes/Yes
  • Stick Resolution : 4096
  • Transmitter Frame : Aluminum
  • Gimbals & Buttons : Aluminum
  • Dimensions [mm] : 230x270x40
  • Output Power - 2.4GHz [mW] : 100
  • Operational temperature [°C] : - 10 to 60
  • Channels : 24
  • Control Inputs (Stick/Switch/Knob) : 22
  • Backup Module 900MHz : Yes
  • Flight Modes : 10
  • Free Mixes : 30
  • Data Graphs : Yes
  • Audio Player : Yes
  • Logical Switches : 24
  • Number of Remote Commands : 24
  • Servo Sequencer : 10
  • Timers : 10
  • Displayed Telemetry Values : 40
  • Sound on Events : 40
  • Alarms : 40
  • Vibration Alarms : Yes
  • Voice Output : Yes
  • MP3 : Yes
  • Microphone : Yes
  • Gyro Settings : 3
  • Servo Balancer : Yes
  • Function Curves : Yes
  • Throttle Limiter (heli) : Yes
  • Variometer : Yes
  • Flight Mode Trim : Yes
  • Data Stream Logging : 80
  • Telemetry Controls : 64
  • Voice Commands : 16
  • Lua Apps : 10
  • Ditex Servo Telemetry : 16
  • Double Path : Yes
  • Accelerometer : Yes
  • Online telemetry via Bluetooth for smartphones : Yes
  • Bluetooth connectivity for headphones : Yes
  • Wi-Fi module : Yes
  • RF modules 2.4GHz/900MHz : 2/1 NG
  • Control Inputs (Stick/Switch/Knob) : 22 (up to 24)
