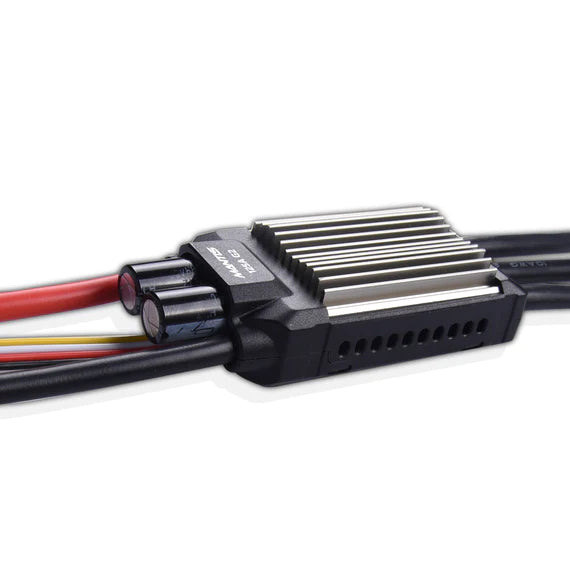

ZTW MANTIS SERIES G2 3-8s 125 A - 135A A BRUSHLESS ESC W/ 8A ADJUSTABLE SBEC and Thrust Reverse
New selected esc perfect fit for EDF and Brushless outrunners
WITH THURST REVERSE !
ZTW Mantis G2 Series 32-bit ESCs combine the latest advancements in speed controller technology with ZTW's legendary quality and reliability.
ZTW speed controllers are one of the most widely used and trusted speed controller brands available on the market today. They are sold under many different brand names, but we choose to purchase direct from the manufacturer without rebranding so that we can pass the savings on to you. ZTW controllers represent a new generation of brushless ESCs using advanced microprocessor technology. They are designed and manufactured with high quality components which provide exceptional reliability, low internal resistance, and a smooth, linear throttle response.
Mantis G2 Features:
- New generation high-performance 32-bit microprocessor (compared to 8-bit in generation 1 Mantis Slim ESCs) provides the following:
- Faster throttle response
- Smoother and more accurate startup
- Improved throttle linearity
- Better motor compatibility, especially high RPM motors
- Lower heat generation
- Higher efficiency
- Upgraded SBEC compared to generation 1 Mantis Series.
- Separate control board and power board design for better performance under heat/heavy load and less circuit interference.
- Supports switching motor rotation.
- Synchronous rectification significantly reduces the heat generation and increases run time.
- Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss.
- Programming via phone app, LCD program card, or transmitter.
Specifications:
- Continuous current: 125A
- Burst Current: 135A
- Cell count: 3-8s Lipo
- Weight: 112g
- SBEC output: 6.7V / 7.4V / 8.4V adjustable @ 8A
- CPU frequency: 96Mhz
- Dimensions: 88x38x24mm
- Power wires: 10AWG 160mm
- Motor wires: 10AWG 65mm
- Programmable via transmitter, G2 program card, Android/iOS app
Programmable functions (default setting in bold):
- SMR Function: OFF/ON
- This function supports switching the motor rotation to decelerate when the airplane landing to the ground.
- Brake Type: OFF/Soft/Mid/Hard
- Timing: Auto/Low/Mid/High(5°/15°/25°)
- Motor Rotation: CW/CCW
- SR function: ON/OFF
- The synchronous rectification function makes ESC with higher driving efficiency and more energy-saving.
- Battery cells: Auto/2S/3S/4S/5S/6S
- Low Voltage Cutoff Threshold: OFF/NIMH50%/NIMH60%/3.0V/3.2V/3.4V/3.6V
- Low Voltage Cutoff Type: Reduce Power/Cut Off Power
- SBEC voltage: 6.7V/7.4V/8.4V
- Acceleration: Normal/Soft
Click here to download the programming manual
